Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors

Product Categories
Shenzhen LINK-PP INT'L Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers

    Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers
    • Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers
    • Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers
    • Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers
    • Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers
    • Buy cheap Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors from wholesalers

    Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LPJG67537CNL
    Certification : UL,ROHS,Reach,ISO
    • Product Details
    • Company Profile

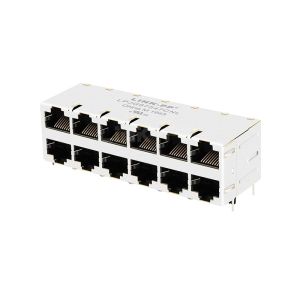

    Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Without Led 2x6 Port 10P8C Stacked RJ45 Connectors

    Belfuse 0833-2X6R-54-F Compatible LINK-PP LPJG67537CNL 100/1000 Base-T Stacked RJ45 Connectors for Switches and Server (2x6 Port, Without Led)


    The LPJG67537CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Intercom, Network Firewall, Switches and Server.


    LINK-PP Part Number:
    LPJG67537CNLBelfuse Part Number0833-2X6R-54-F
    Part Status
    ActiveConnector Type
    Jack
    Number of Positions/Contacts
    10p8c (RJ45, Ethernet)Application-Lan
    Ethernet(NoN PoE)
    Number of Ports
    2x6 PortSpeed
    10/100/1000 Base-T
    Latch
    BothCores per Port
    8
    Orientation
    90° Angle (Right)PCB Mount Angle

    SIDE ENTRY

    Shield EMI Tabs
    WithLED Option

    Without Leds

    PCB
    FR4PCB Retaining Post

    T POST

    Package Height (Inches/mm)
    1.015/25.79Package Length (Inches/mm)

    1.116/28.35

    Package Width (Inches/mm)
    3.430/87.12Temperature

    0 TO 70℃

    Bst Circuit
    YesAutomDX

    YES

    Diodes
    NoContact Mating Area Plating

    GOLD 6u"/15u"/30u"

    Turns Ratio RX/TX
    1CT:1CTConfiguration RX/TX

    T,C































    Product Tags:

    LPJG67537CNL
