Hanrun HR913129AE Compatible LINK-PP LPJ4011FBNL 10/100 Base-T Tab Down Green/Yellow Led 1 Port 8 Pin RJ45 Shielded Connectors

Product Categories
Shenzhen LINK-PP INT'L Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

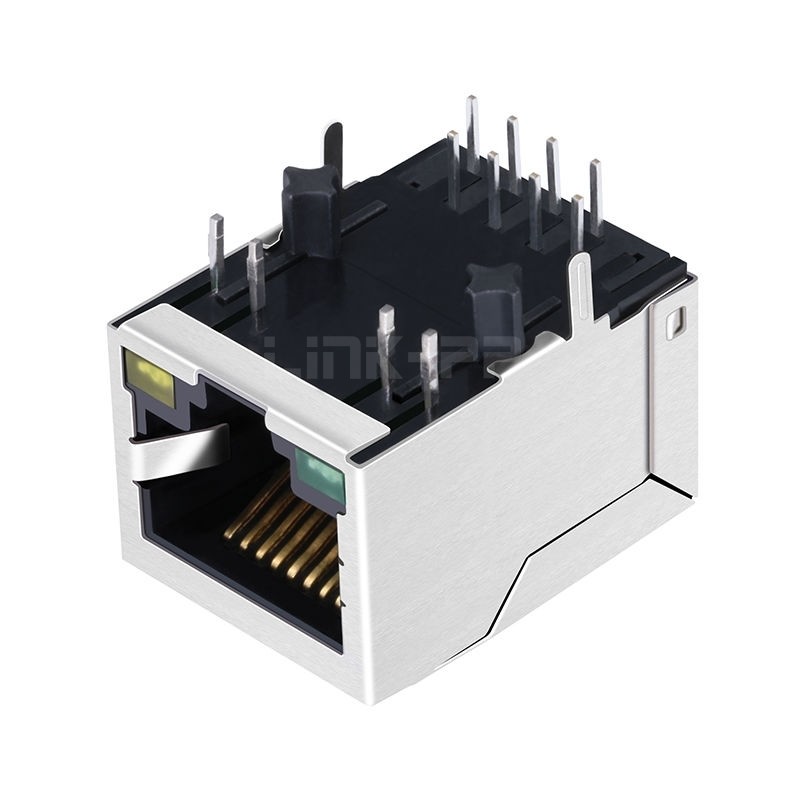

Hanrun HR913129AE Compatible LINK-PP LPJ4011FBNL 10/100 Base-T Tab Down Green/Yellow Led 1 Port 8 Pin RJ45 Shielded Connectors

Hanrun HR913129AE Compatible LINK-PP LPJ4011FBNL 10/100 Base-T 8 Pin RJ45 Shielded Connectors for Smart Camera and Game Controller (1 Port, Tab Down, Green/Yellow Led)


The LPJ4011FBNL supports speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Smart Camera and Game Controller.


LINK-PP Part Number:
LPJ4011FBNLHanrun Part NumberHR913129AE
Part Status
ActiveConnector Type
Jack
Number of Positions/Contacts
8p8c (RJ45, Ethernet)Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100 Base-T
Latch
DownCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.524/13.30Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm)
0.627/15.93Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

































Product Tags:

LPJ4011FBNL


Quality Hanrun HR913129AE Compatible LINK-PP LPJ4011FBNL 10/100 Base-T Tab Down Green/Yellow Led 1 Port 8 Pin RJ45 Shielded Connectors for sale
